SIP 3″ Belt Linisher

The SIP 3″ Belt Linisher easily helps to improve the flatness and uniform surfacing of a variety of different material lengths and sizes using a selection of adjustable mechanisms to match the set-up of the machine to the task at hand.

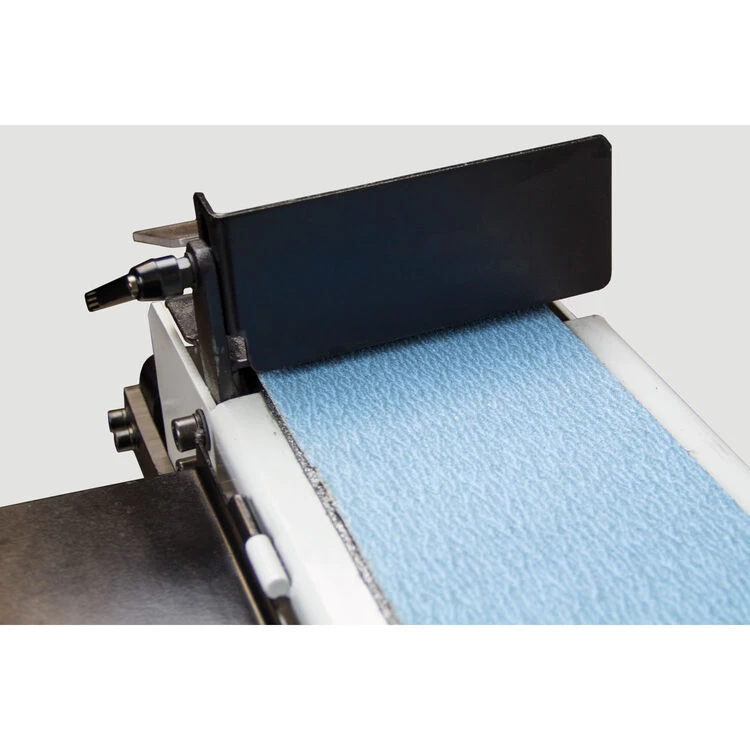

Adjustable tool support offers accurate positioning of the workpiece and easy angle adjustment, while the linisher head tilt accommodates varying workpieces. Moreover, 3-point belt access on the wheel, platen top, and full platen increases versatility further.

• Heavy-duty construction with pedestal stand ideal for workshop requirements
• 3-point belt access; on wheel, platen top, and full platen for a variety of needs
• Adjustable tool support and angles for accurate positioning of the workpiece
• Linishing head tilt to accommodate a variety of material lengths and sizes
• Quick belt release handle for fast belt changing via easy-access side panel
• Belt tracking adjusting knob ensures the belt runs straight and true
• Adjustable eye protection and NVR switch for increased user safety
• Designed for trade and professional applications
• SIP 2-Year Standard Silver WarrantynITEM NO. 01948
  Input Supply: 3-PHASE 400v
  Motor Power: 4hp (3kW)
  Belt Size: 2000mm x 75mm
  Belt Speed: 34mtr/sec
  Flat Grinding: 530mm
  Contact Wheel: 200mm x 75mm
  Steering Roller: 225mm x 75mm
  Working Height: 475mm – 1240mm
