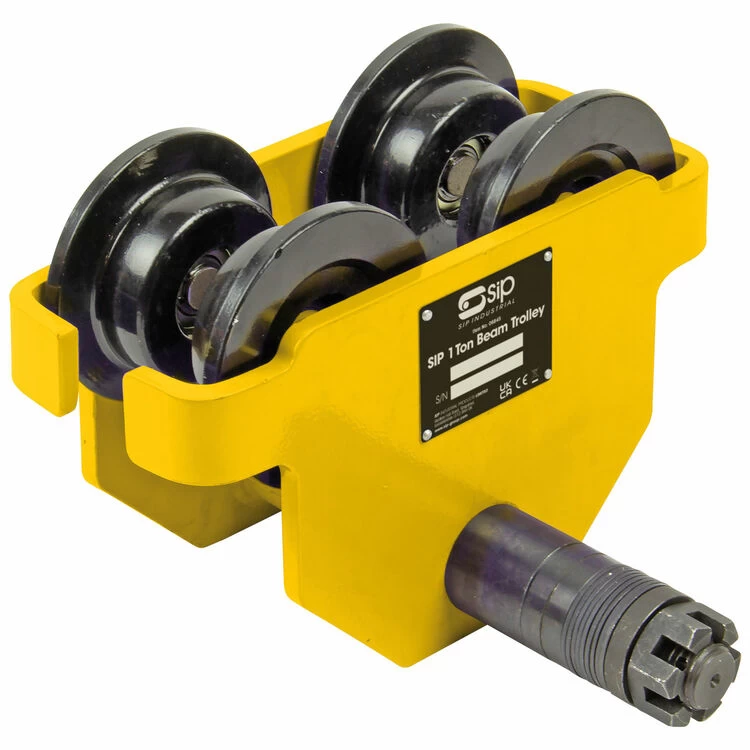

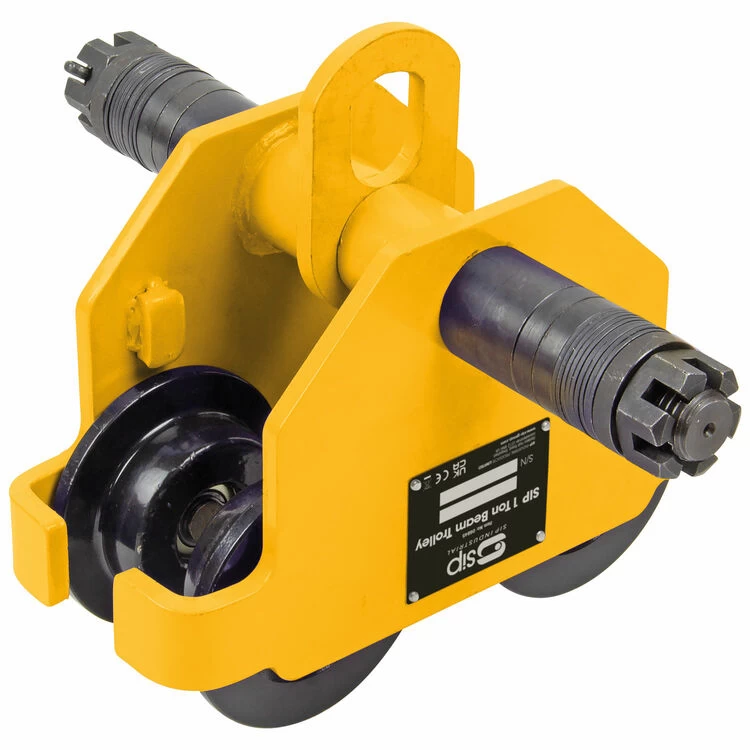

SIP 1 TONNE Gantry Crane Beam Trolley

The SIP 1 TONNE Gantry Crane Beam Trolley is a heavy-duty push/pull trolley with 4 bearing-mounted wheels and integrated wheel guards perfect for when two or more trolleys are in use on the same frame.

Suitable for ‘I’ sections and RSJ beam types, and particularly complements the SIP 1 TONNE Gantry Crane Frame and SIP 1 TONNE Gantry Crane Chain Block.

• 1 TONNE maximum weight capacity
• Heavy-duty push/pull crane beam trolley
• Suitable for all ‘I’ sections and RSJ beam types, particularly the SIP 1 TONNE Gantry Crane Frame
• Fitted with wheel guards for added protection
• 4 heavy-duty bearing-mounted wheels
• SIP 2-Year Standard Silver WarrantynITEM NO. 03851
  Suitable For: 03849
  Safe Working Load: 1 TONNE
  Min. ‘I’ Beam Width: 64mm
  Max. ‘I’ Beam Width: 140mm
  Min. Standard Beam: 125mm x 75mm x 5.5mm
  Max. Standard Beam: 250mm x 125mm x 7.5mm
  Designed For: ‘I’ sections / RSJ beams
