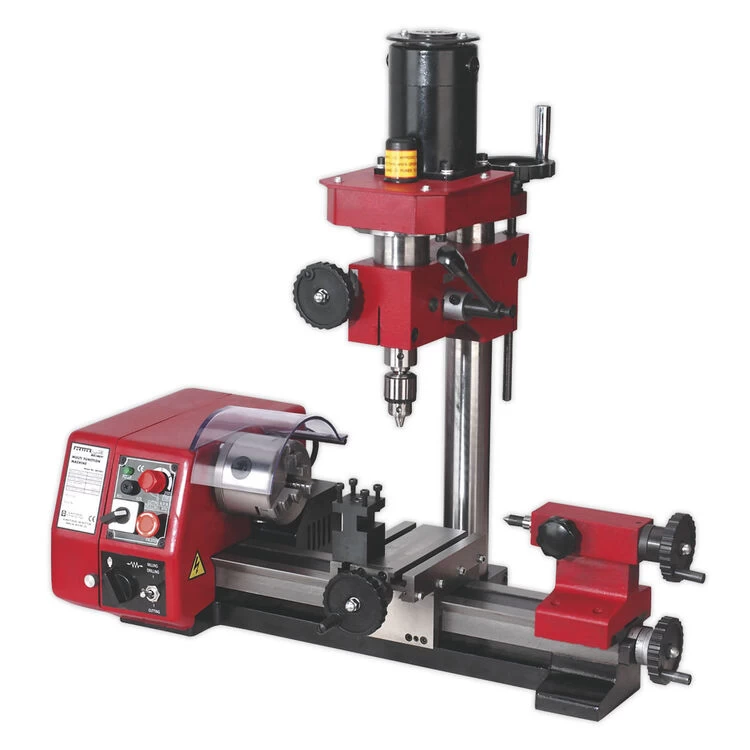

⢠Bench mounting multifunction mini drill, mill and lathe with variable speed giving flexibility to handle most materials.
⢠Features two 150W motors, one to operate the drill/mill and the other to power the lathe.
⢠The lathe cutting feed can be power driven or advanced manually.
⢠Thread cutting may also be undertaken with the optional thread cutting kit.
⢠Supplied with Metric graduated scales and all necessary tools required for setting and adjusting.
⢠An optional stand is available, order Model No. SM3002ST.
⢠Features two 150W motors, one to operate the drill/mill and the other to power the lathe.
⢠The lathe cutting feed can be power driven or advanced manually.
⢠Thread cutting may also be undertaken with the optional thread cutting kit.
⢠Supplied with Metric graduated scales and all necessary tools required for setting and adjusting.
⢠An optional stand is available, order Model No. SM3002ST.
Specification
| Name | Value |
|---|---|
| Model No | SM2503 |
| Nett Weight | 39.2kg |
| Weight | 39.2kg |
| Motor Power | 2 x 150W – 230V |
| Distance Between Centres | 250mm |
| Tailstock Taper | MT1 |
| T-slot | 8mm |
| Swing Over Bed | 140mm |
| Spindle Hole Taper | MT2 |
| Cross Slide Travel | 61mm |
| Spindle Speed (variable) | 100-2000rpm |
| Range Of Metric Threads | 5 Pitches (0.5-1.25mm) |
| Maximum Drilling/milling Capacity | 10mm |
| Drilling/milling Spindle Travel | 30mm |
| Drilling/milling Spindle Speed | 100-1300rpm |
| Distance From Spindle To Table | 180mm |
| Distance From Spindle Centre To Column | 100mm |
SKU: SM2503
Manufacturer part code: SM2503
