Name: Sealey SC10LR Crane 1tonne Long Reach Extendable Legs
SKU: C2P0B 480793363
Availability: InStock

New

Sealey SC10LR Crane 1tonne Long Reach Extendable Legs

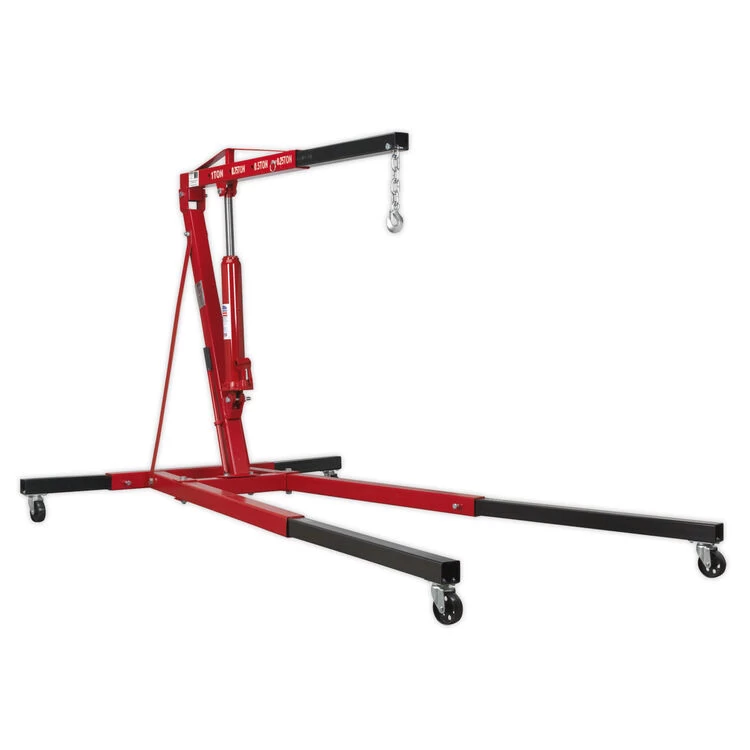

Sealey SC10LR Crane 1tonne Long Reach Extendable Legs - Image 2

Original price was: $357.00.Current price is: $98.99.

SKU: C2P0B 480793363 Categories: Cranes, Jacking & Lifting

100% High Quality Guarantee
Multiple payment methods, 100% payment security
Safe Shopping Guaranteed
Nature-friendly materials, for a better planet.

Description
Reviews (0)

• Delivered in knock-down form for reduced freight cost.
• Heavy-duty front and rear castors are on extendable legs to give improved stability, particularly when operating at maximum jib extension of 1447mm.
• Side pump access with removable handle.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

Specification

Name	Value
Model No	SC10LR
Nett Weight	81.5kg
Length	1450mm
Height Jib Down	1446mm
Height Of Frame	180mm
Length Legs Extended	1600mm
Length Of Jib Position 1	937mm
Length Of Jib Position 2	1107mm
Length Of Jib Position 3	1277mm
Length Of Jib Position 4	1447mm
Length Of Jib Position 5	n/a
Lifting Capacity In Position 1	1000kg
Lifting Capacity In Position 2	750kg
Lifting Capacity In Position 3	500kg
Lifting Capacity In Position 4	250kg
Lifting Capacity In Position 5	n/a
Max. Lift Ht At Jib Position 1	1750mm
Max. Lift Ht At Jib Position 2	1850mm
Max. Lift Ht At Jib Position 3	1950mm
Max. Lift Ht At Jib Position 4	2050mm
Max. Lift Ht At Jib Position 5	n/a
Rear Width	860/1160mm
Width Front Frame	690-720mm
Width Inside Front Frame	381/605mm
