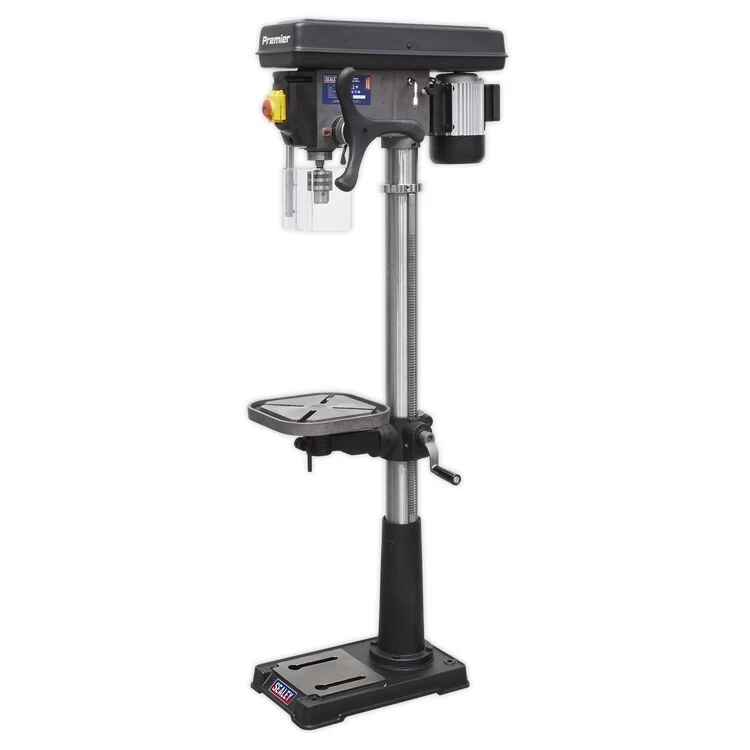

• One of a comprehensive range of Premier floor standing pillar drills for the professional workshop.
• Features heavy-duty aluminium-bodied motor for long and reliable performance.
• No-volt release switch to prevent inadvertent start-up and pulley cover protected by microswitch to prevent drill operating when cover is open.
• Fitted with an integral work light which illuminates the drilling table giving operator a clear view of the drilling process.
• Electrically inter-locked chuck guard.
• Large sized square table fitted with precision rack and pinion height adjustment.
• 16mm(5/8″) Capacity chuck, MT2.
• Height: 1610mm.
• Spindle Centre to Column: 190mm.
• Motor Power: 370W.
• Column Diameter: Ø80mm.
• Spindle Travel: 80mm.
• Weight: 63kg.
• Features heavy-duty aluminium-bodied motor for long and reliable performance.
• No-volt release switch to prevent inadvertent start-up and pulley cover protected by microswitch to prevent drill operating when cover is open.
• Fitted with an integral work light which illuminates the drilling table giving operator a clear view of the drilling process.
• Electrically inter-locked chuck guard.
• Large sized square table fitted with precision rack and pinion height adjustment.
• 16mm(5/8″) Capacity chuck, MT2.
• Height: 1610mm.
• Spindle Centre to Column: 190mm.
• Motor Power: 370W.
• Column Diameter: Ø80mm.
• Spindle Travel: 80mm.
• Weight: 63kg.
Specification
| Name | Value |
|---|---|
| Model No | PDM210F |
| Nett Weight | 62kg |
| Base Size | 495 x 290mm |
| Optional Accessories | PDM/KC – Keyless Pillar Drill Chuck 16mm |
| Overall Height | 1610mm |
| Supply | 230V |
| Collar Diameter | Ø60mm |
| Column Diameter | Ø80mm |
| Drilling Capacity (chuck Size) | 16mm |
| Maximum Distance Spindle To Base | 1225mm |
| Maximum Distance Spindle To Table | 725mm |
| Motor Power (start) | 370W(600W) |
| Number Of Speeds | 16 |
| Speed Range | 190-3000rpm |
| Spindle Centre To Column | 190mm |
| Spindle Nose Taper | MT2 |
| Spindle Travel | 80mm |
| Swing | 380mm |
| Working Base Surface Size | 205 x 200mm |
| Working Table Surface Size | 290 x 290mm |
| Integral Work Light | Yes |
SKU: PDM210F
Manufacturer part code: PDM210F
