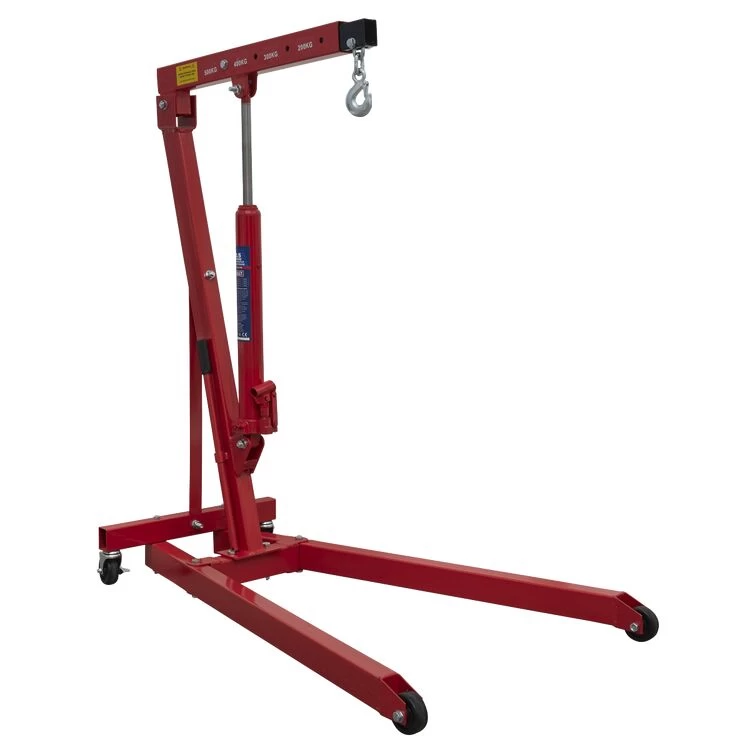

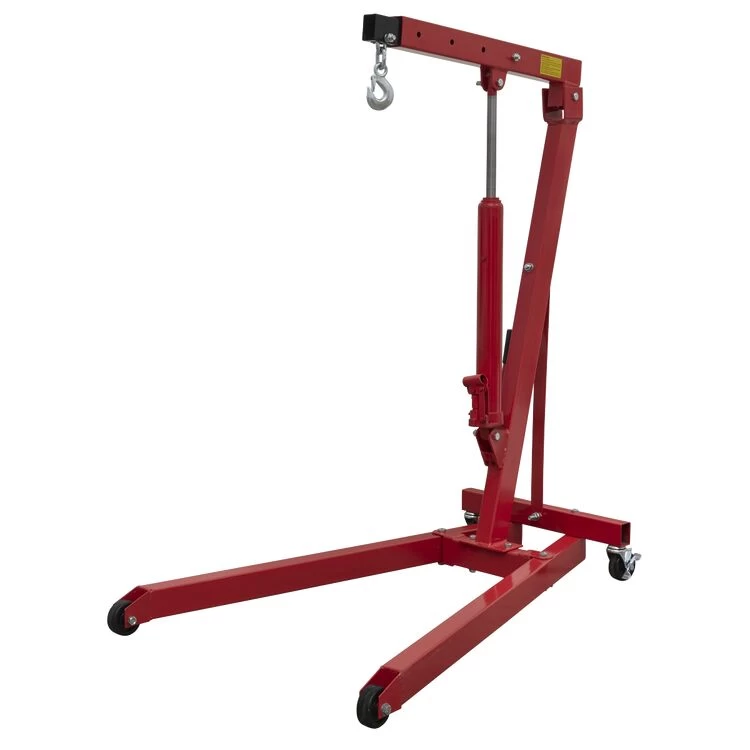

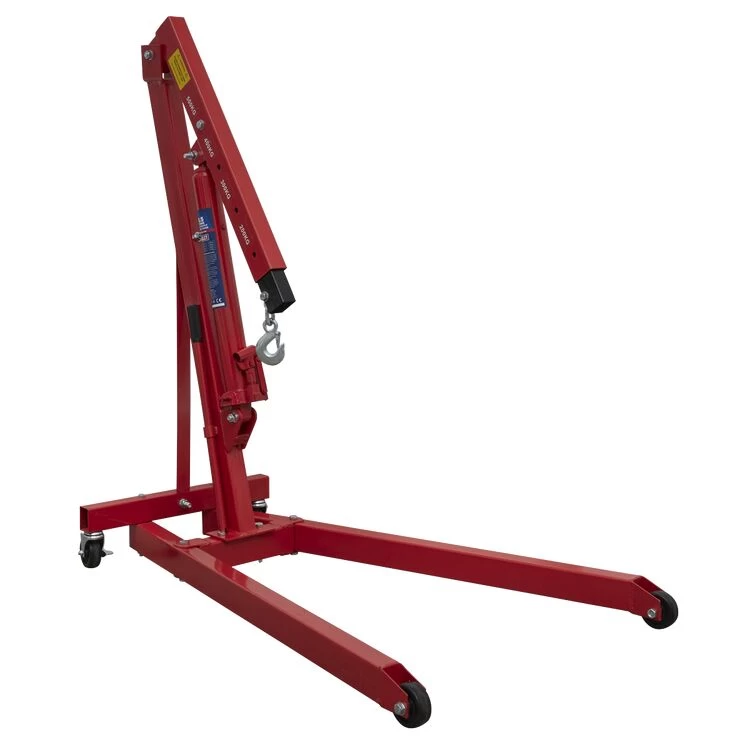

Name: Sealey PH5 Low Profile Engine Crane 0.5tonne
SKU: C2P0B 935916252
Availability: InStock

New

Original price was: $263.33.Current price is: $98.99.

SKU: C2P0B 935916252 Categories: Cranes, Jacking & Lifting

100% High Quality Guarantee
Multiple payment methods, 100% payment security
Safe Shopping Guaranteed
Nature-friendly materials, for a better planet.

Description
Reviews (0)

• Low profile engine crane with a height of only 100mm at the wheels.
• Weighs only 37kg so is extremely lightweight and manoeuvrable.
• Heavy-duty castors and pump access from side, for safe handling of loads.
• Delivered in knock-down form to reduce freight costs, some self-assembly required.

Specification

Name	Value
Model No	PH5
Nett Weight	37kg
Length	1210mm
Height Jib Down	1330mm
Height Legs Folded	n/a
Height Of Frame	100mm
Length Legs Extended	n/a
Length Of Jib Position 1	750mm
Length Of Jib Position 2	860mm
Length Of Jib Position 3	980mm
Length Of Jib Position 4	1100mm
Length Of Jib Position 5	n/a
Lifting Capacity In Position 1	500kg
Lifting Capacity In Position 2	400kg
Lifting Capacity In Position 3	300kg
Lifting Capacity In Position 4	200kg
Lifting Capacity In Position 5	n/a
Max. Lift Ht At Jib Position 1	1950mm
Max. Lift Ht At Jib Position 2	2050mm
Max. Lift Ht At Jib Position 3	2150mm
Max. Lift Ht At Jib Position 4	2250mm
Max. Lift Ht At Jib Position 5	n/a
Rear Width	550mm
Width Front Frame	700mm
Width Inside Front Frame	800mm
