New
Original price was: $358.00.$96.99Current price is: $96.99.
- 100% High Quality Guarantee
- Multiple payment methods, 100% payment security
- Safe Shopping Guaranteed
- Nature-friendly materials, for a better planet.
• Lifts 3000kg at 1200mm jib extension.
• Heavy-duty castors.
• Perfect for heavy commercial, industrial and workshop use.

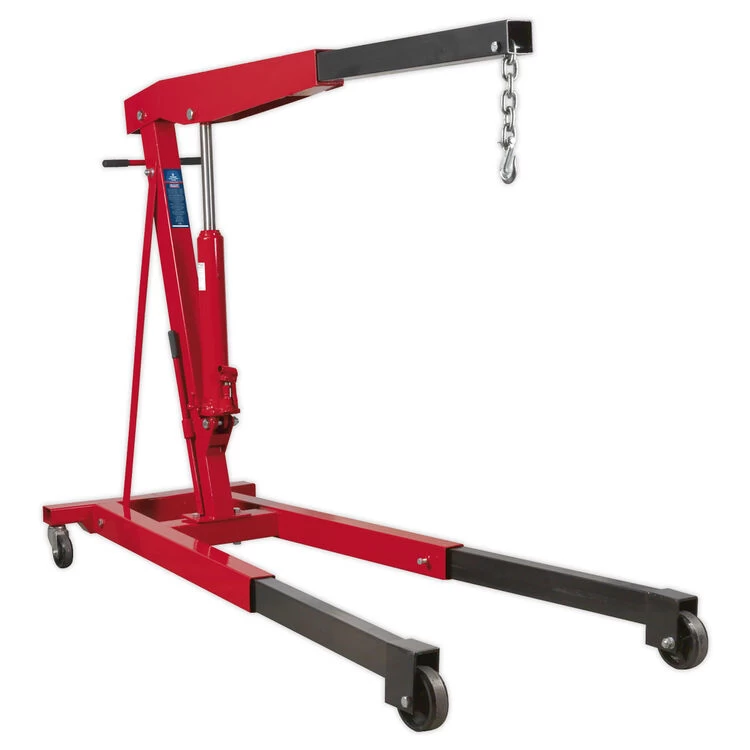

• Extendable heavy-duty legs for improved stability, particularly when operating at maximum jib extensions.
• Pump access from side for safe handling of heavy loads.
• Delivered in knock-down form for reduced freight cost.
• Some self-assembly required.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
• Heavy-duty castors.
• Perfect for heavy commercial, industrial and workshop use.
• Extendable heavy-duty legs for improved stability, particularly when operating at maximum jib extensions.
• Pump access from side for safe handling of heavy loads.
• Delivered in knock-down form for reduced freight cost.
• Some self-assembly required.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Specification
| Name | Value |
|---|---|
| Model No | PH30 |
| Nett Weight | 155kg |
| Note | *Legs Extended |
| Height Jib Down | 1610mm |
| Height Legs Folded | n/a |
| Height Of Frame | 195mm |
| Length Of Jib Position 1 | 1200mm |
| Length Of Jib Position 2 | 1400mm |
| Length Of Jib Position 3 | 1610mm |
| Length Of Jib Position 4 | 1820mm |
| Length Of Jib Position 5 | n/a |
| Lifting Capacity In Position 1 | 3000kg |
| Lifting Capacity In Position 2 | 2000kg |
| Lifting Capacity In Position 3 | 1500kg |
| Lifting Capacity In Position 4 | 1000kg |
| Lifting Capacity In Position 5 | n/a |
| Max. Lift Ht At Jib Position 1 | 1880mm |
| Max. Lift Ht At Jib Position 2 | 1970mm |
| Max. Lift Ht At Jib Position 3 | 2010mm |
| Max. Lift Ht At Jib Position 4 | 2220mm |
| Max. Lift Ht At Jib Position 5 | n/a |
| Rear Width | 780mm |
| Width Front Frame | 855mm* |
| Width Inside Front Frame | 700mm* |
SKU: PH30
Manufacturer part code: PH30
