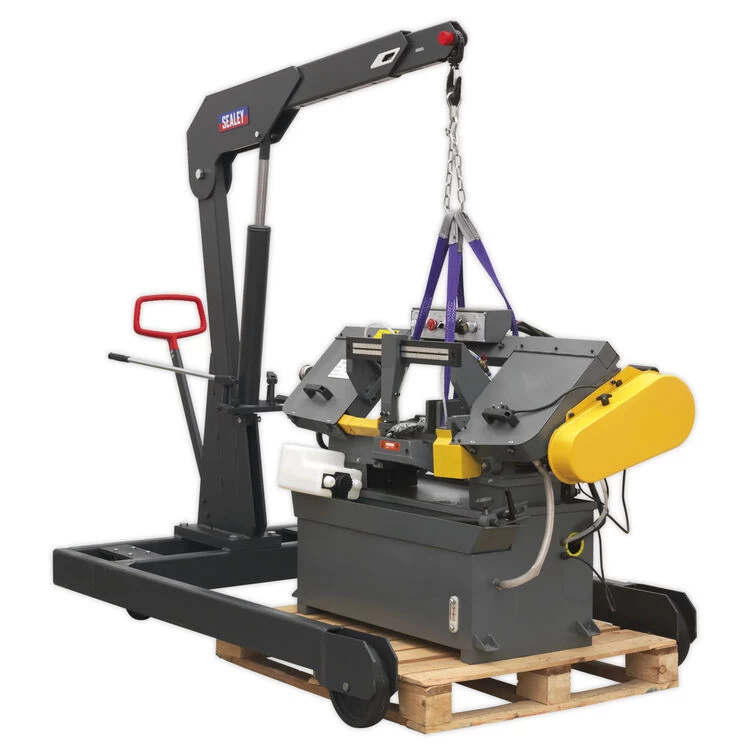

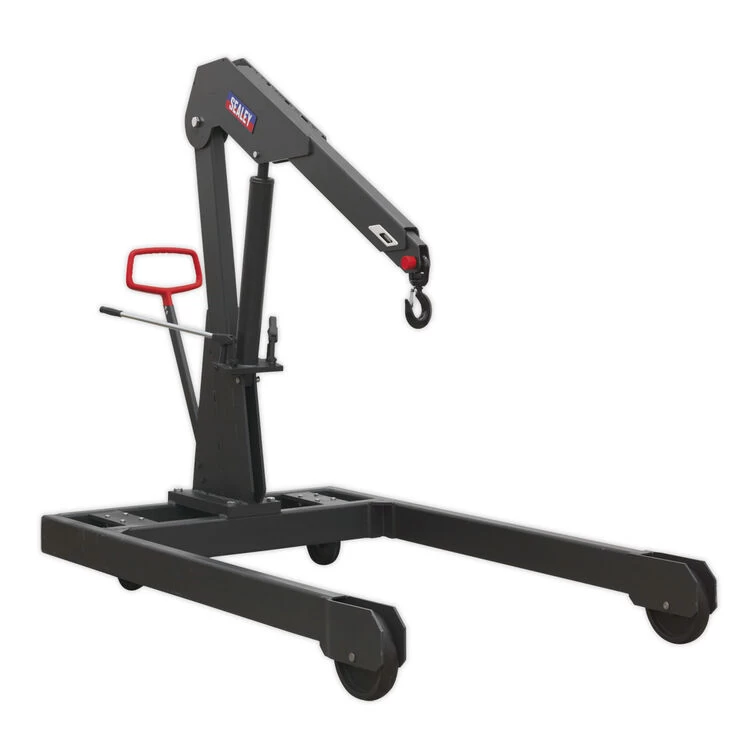

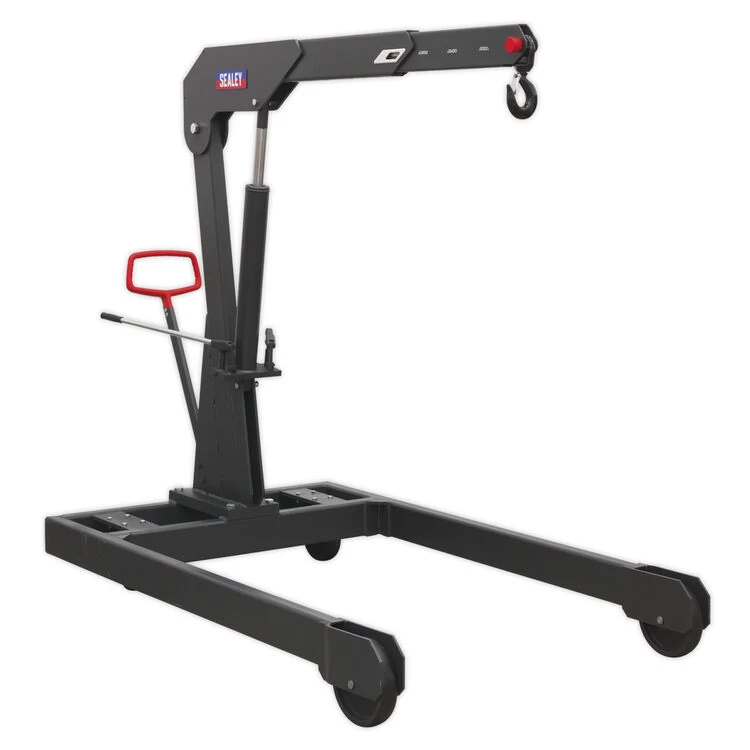

âą Professional 3 Tonne fixed crane with parallel legs, designed to accommodate a standard size pallet and features heavy-duty forged hook.
âą Lowers rapidly with no load, whilst providing smooth, controlled lowering under load conditions.
âą Beam can be set in 4-positions, with a capacity of 2000kg at its full extension of 1870mm.

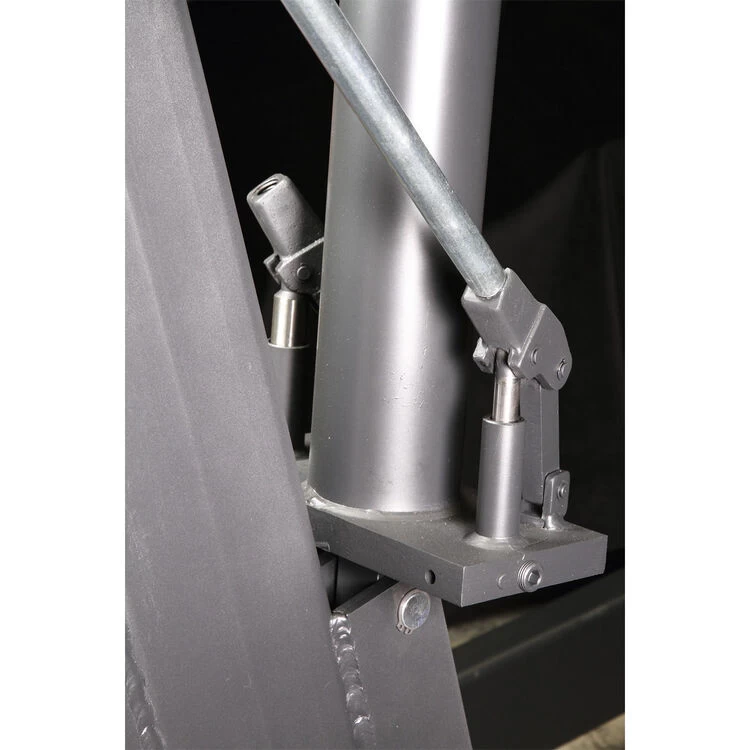

âą Crane features two pumps one for slow, safe controlled lifting and a quick lift pump.
âą Weighs 299kg and is suitable for workshop use.
âą 3 Year guarantee*.
âą This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
âą Lowers rapidly with no load, whilst providing smooth, controlled lowering under load conditions.
âą Beam can be set in 4-positions, with a capacity of 2000kg at its full extension of 1870mm.
âą Crane features two pumps one for slow, safe controlled lifting and a quick lift pump.
âą Weighs 299kg and is suitable for workshop use.
âą 3 Year guarantee*.
âą This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Specification
| Name | Value |
|---|---|
| Model No | PFC301 |
| Nett Weight | 299kg |
| Length | 2400mm |
| Height Jib Down | 1930mm |
| Height Legs Folded | n/a |
| Height Of Frame | 265mm |
| Length Legs Extended | n/a |
| Length Of Jib Position 1 | 1430mm |
| Length Of Jib Position 2 | 1580mm |
| Length Of Jib Position 3 | 1730mm |
| Length Of Jib Position 4 | 1870mm |
| Length Of Jib Position 5 | n/a |
| Lifting Capacity In Position 1 | 3000kg |
| Lifting Capacity In Position 2 | 2500kg |
| Lifting Capacity In Position 3 | 2300kg |
| Lifting Capacity In Position 4 | 2000kg |
| Lifting Capacity In Position 5 | n/a |
| Max. Lift Ht At Jib Position 1 | 2720mm |
| Max. Lift Ht At Jib Position 2 | 2850mm |
| Max. Lift Ht At Jib Position 3 | 2950mm |
| Max. Lift Ht At Jib Position 4 | 3050mm |
| Max. Lift Ht At Jib Position 5 | n/a |
| Rear Width | 1275mm |
| Width Front Frame | 1300mm |
| Width Inside Front Frame | 1100mm |
SKU: PFC301
Manufacturer part code: PFC301
