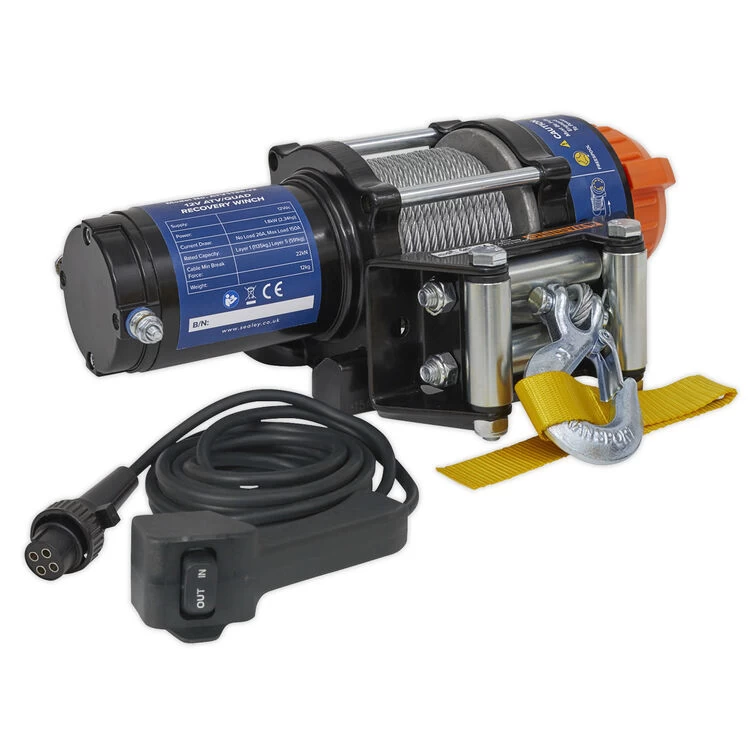

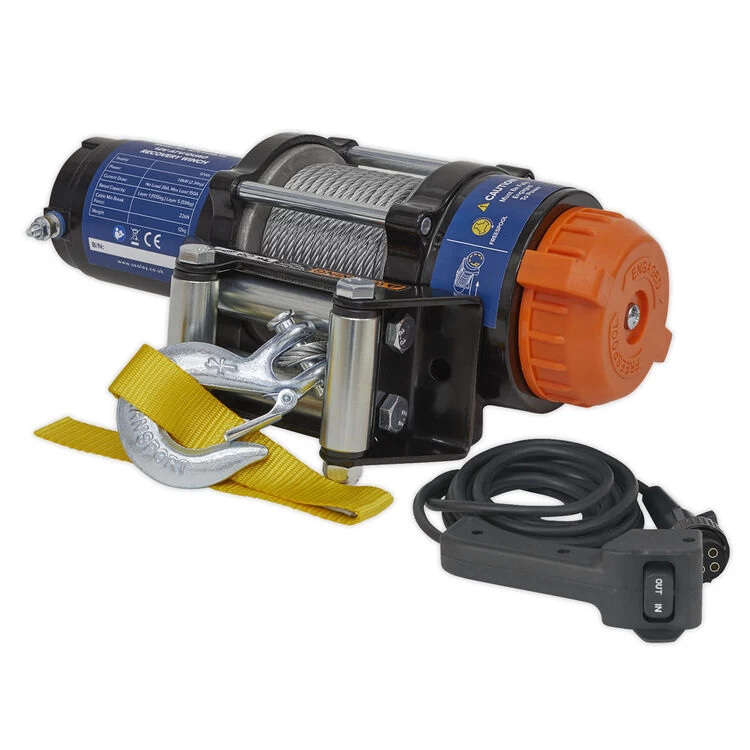

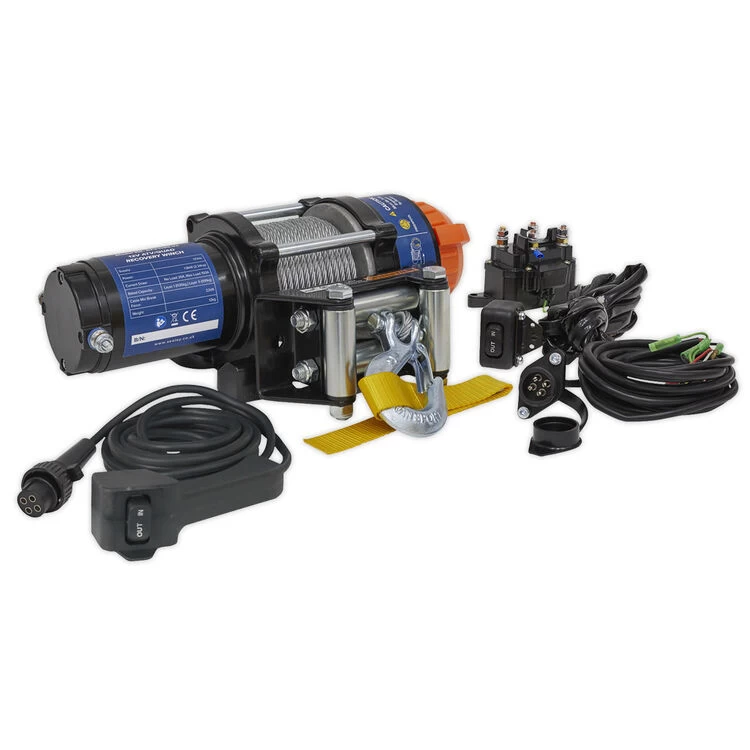

• Suitable for ATV & quadbike mounting, these high-speed winches offer a combination of performance with durability.
• Designed and built with the toughest jobs in mind.
• High power 1.8kW (2.34hp) 12V DC permanent magnet type motor gives first class pulling power.
• Heavy-duty all-weather housing.
• 3-Stage planetary gears.
• Patented unique automatic spring brake, reliable in full load operation.
• Sliding ring gear clutch
• High quality wire rope feeds through 4-way roller fairlead.
• IP67 rated motor and gearbox.
• Gear Ratio: 180:1.
• Designed and built with the toughest jobs in mind.
• High power 1.8kW (2.34hp) 12V DC permanent magnet type motor gives first class pulling power.
• Heavy-duty all-weather housing.
• 3-Stage planetary gears.
• Patented unique automatic spring brake, reliable in full load operation.
• Sliding ring gear clutch
• High quality wire rope feeds through 4-way roller fairlead.
• IP67 rated motor and gearbox.
• Gear Ratio: 180:1.
Specification
| Name | Value |
|---|---|
| Model No | ATV1135 |
| Nett Weight | 11.8kg |
| Consumable Parts | ATV1135.WR – Wire Rope (Ø4.8mm x 15.2m) for ATV1135, ATV1135.DR – Dyneema Rope (Ø4.9mm x 15.2m) for ATV1135 |
| Supply | 12V |
| Note | *Performance quoted at first layer of cable on drum |
| Motor Power | 1.8kW(2.34hp) |
| Gear Ratio | 180:1 |
| Current Draw | No-Load – 26A, Maximum Load – 150A |
| Line Pull* | 1135kg(2500lb) |
| Line Speed* | No-Load – 4.8m/min, Maximum Load – 1.6m/min |
| Wire Rope Diameter | 4.8mm |
| Wire Rope Length | 14m |
| Rated Capacity | Layer 1: 1135kg, Layer 5: 591kg |
| Cable Minimum Brake Force | 22kN |
SKU: ATV1135
Manufacturer part code: ATV1135
