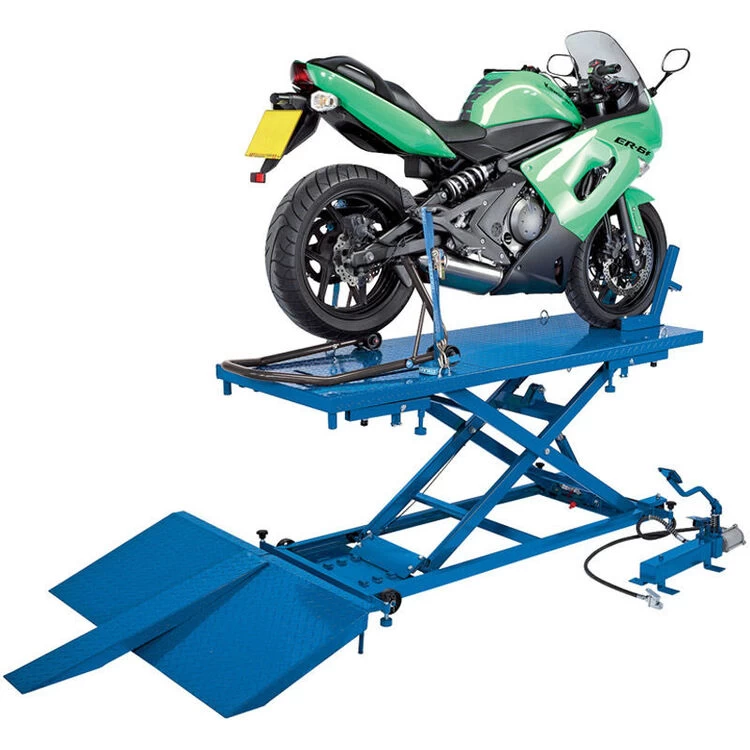

Draper 37190 680kg Pneumatic/Hydraulic Motorcycle/ATV Small Garden Machinery Lift

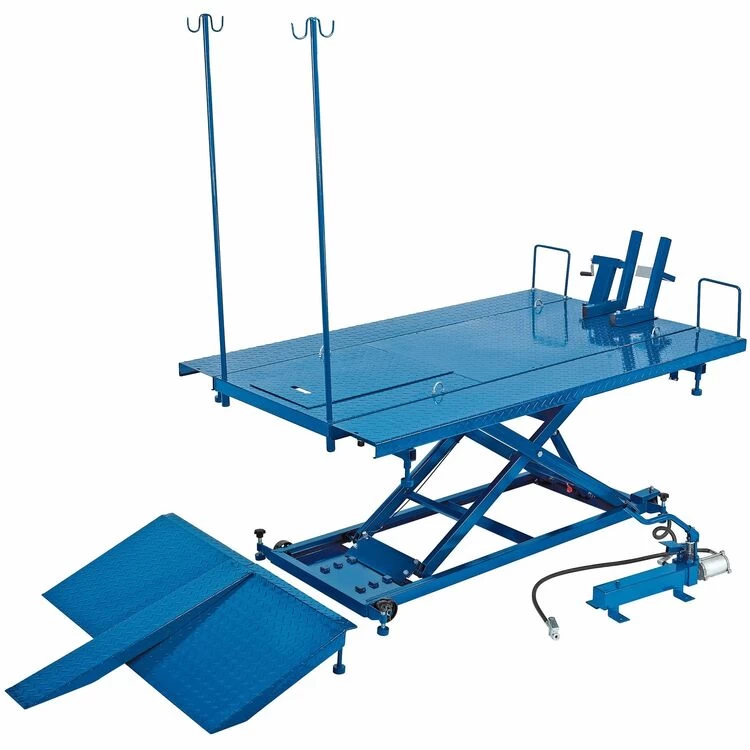

Large lift that supports motorcycles plus all terrain vehicles (ATV), Mini tractors and other similar – sized vehicles which can be accommodated by using the Supplied additional side platforms for extra width. All steel construction with heavy duty foot operated dual hydraulic pump and pneumatic pump – up system with controller and ram assembly. Safety table lock device to prevent accidental lowering. Removable front wheel clamp and rear panel to facilitate rear wheel changes (motorcycles only). Base assembly fitted with transport wheels and lock downs to prevent lift from moving whilst in use. Table surface is stippled for safety and grip whilst loading motorcycles/ATV/small garden machinery. Supplied in wooden crate.

Capacity: 680kg (1500lbs)
Operating air pressure: 90psi (6.2bar)
Air inlet: 1/4″BSP
Lifting range: 200-885mm
Working height stops : 550; 720; 840mm
Maximum height: 885mm
Closed height: 200mm
Table as motorcycle lift (L x W): 1950 x 680mm
Table as for ATV use (L x W): 1950 x 1220mm
Motorcycle loading ramp (L x W): 850 x 150mm
Rear wheel removal panel (L x W): 600 x 250mm
Weight: 260kg
