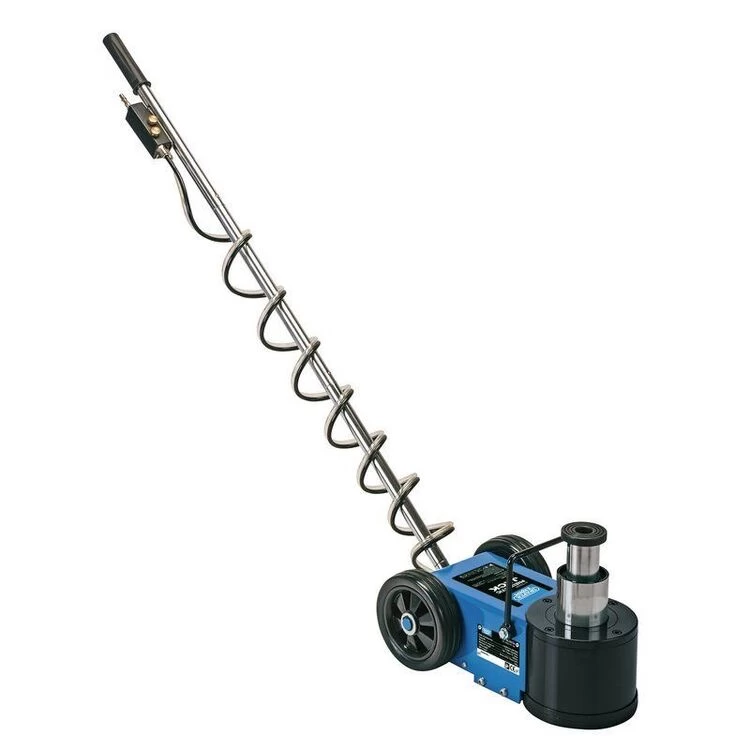

Draper 03724 Pneumatic Jack (30 Tonne)

Expert Quality, portable and compact twin stage pneumatic jack, capable of lifting 30 Tonnes. The ergonomic handle is fixed with a “Slow Down” valve and a “Self-Return” switch for increased safety and easy use. Fitted with industrial quality seals prolonging the life of the jack, a safety overload valve and twin rubber coated wheels for a quieter and smoother operation, whilst also preventing damage to garage floors and improving manoeuvrability. Supplied with 45mm and 75mm height lift extensions and a 1/4″ BSP airline connector. Manufactured, tested and certified to the current EN1494 standard.

Capacity stage 1   30 Tonne (30,000kg)
Capacity stage 2   15 Tonne (15,000kg)
Minimum height   150mm
Maximum height stage 1   343mm (inc extensions)
Maximum height stage 2   409mm (inc extensions)
Lift height stage 1   73mm
Lift height stage 2   66mm
Operating air pressure   9 – 12BAR (130 – 174psi)
Air consumption   10.5cfm
Air inlet   1/4” BSP
Wheel diameter   165mm
Wheel width   42.5mm
Saddle diameter   70mm
Extensions   45mm and 75mm
Handle length   1200mm
Chassis size   430 x 176 x 150mm
Nett weight   30kg
