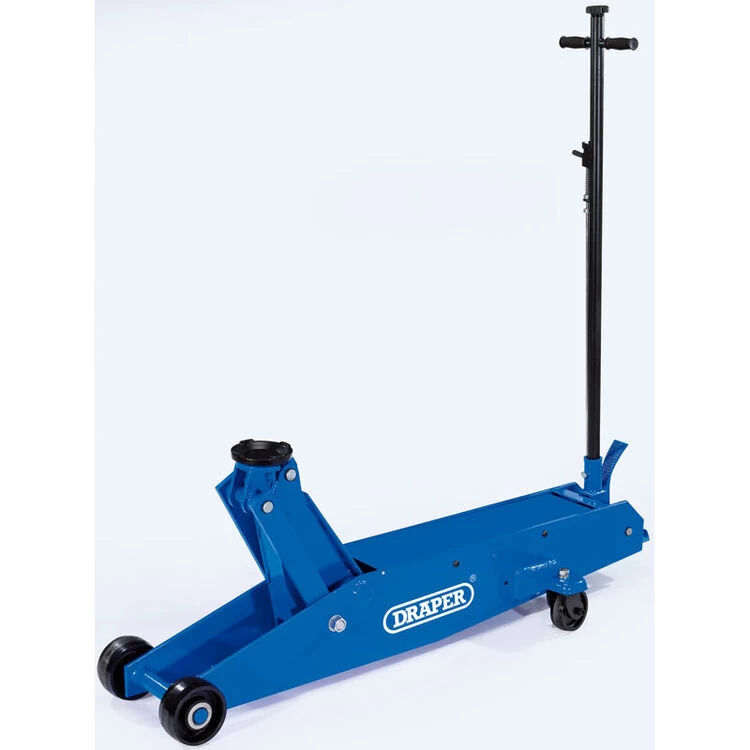

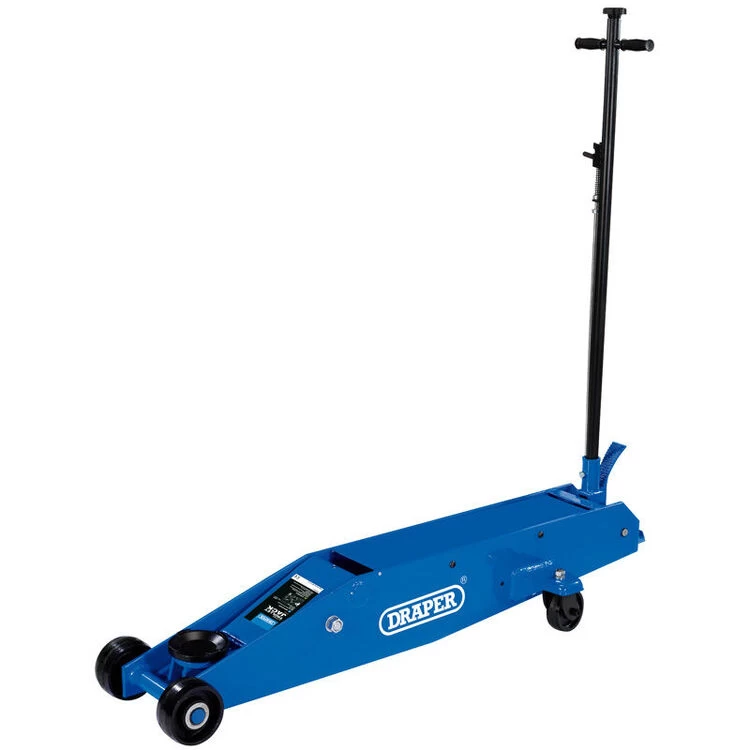

Draper 03494 Long Chassis Trolley Jack (10 Tonne)

Heavy-duty chassis fitted with a ‘quick-lift’ foot pedal to rapidly raise the saddle to the vehicle jacking point. Large saddle aids positioning. Locking facility allows the handle to be locked in three positions. T-shaped handle with an incorporated release valve prevents accidental lowering. Rear swivelling castors with toe plate increases manoeuvrability. Safety valve prevents the jack from overloading. Supplied with a one piece handle.

Capacity   10 Tonne (10,000kg)
Minimum Height   170mm
Maximum Height   570mm
Saddle Diameter   130mm
Handle Length   1,220mm
Chassis Length   1,535mm
Nett Weight   125kg
